Building and Linking the DS9 executable
Downloading and building from source
The DS9 code is available on github. The source code assumes standard system libraries.
Source tree
The root of the source tree is a directory SAOImageDS9/. Underneath this are a series of directories that include both OTS and DS9 source, and some directories that handle operating system portability.
DS9 is built from a collection of 17 packages developed and/or now solely maintained by SAO. The DS9 project has taken over development of some projects such as 'funtools', 'xpa', and 'tkblt' since (a) they have been abandoned by their creators, (b) they provide essential functionality and (c) actively developed replacement packages do not exist. DS9 also relies on an additional 16 third-party packages which are still being actively maintained by the author/community.
The following table summarizes the different top level components of the DS9 code base as of DS9 v8.6.
We assign each component to one of three categories: SAO (the code was written at SAO); OTS (the code is off-the-shelf software, externally maintained, and external updates may require maintenance work on our end); and AOTS ('adopted OTS', the code used to be OTS but is no longer maintained and we now treat it as internal even though we didn't write it originally). Most AOTS code has undergone only minor maintenance since we took it over, but the BLT code has been signficantly updated. LOC for Makefiles and build macros are not called out in the table.
| Component | C/C++ | Tcl/Tk | Parser | Other | Category | Description |
| LOC | LOC | |||||
| Core code | ||||||
| ds9 | 689 | 97986 | 14929 | 0 | SAO | Core DS9 GUI definition code, see next section |
| tksao | 76880 | 0 | 9765 | 0 | SAO | Defines the DS9 Frame, Colorbar, etc |
| Astronomy standards | ||||||
| fitsy | 14794 | 0 | 1526 | 0 | SAO | FITS format I/O routines |
| tclfitsy | 1044 | 0 | 0 | 0 | SAO | TCL interface to fitsy |
| funtools | 142772 | 25 | 0 | 0 | SAO | FITS table filtering |
| ast | 584510 | 0 | 0 | 0 | OTS | Coordinate systems |
| Image, Data I/O | ||||||
| tkimg | 294027 | 8204 | 0 | 0 | OTS | Image formats support |
| tkblt | 30222 | 2762 | 0 | 0 | SAO | Line graphics plots |
| tkmpeg | 1341 | 0 | 0 | 0 | AOTS/SAO | Write MPEG movies |
| tkagif | 833 | 0 | 0 | 0 | SAO | Write animated gifs |
| tktable | 12809 | 1655 | 0 | 0 | OTS | Table display |
| tksvg | 5535 | 0 | 0 | 0 | OTS | SVG graphics |
| Portability (mostly configure/make) | ||||||
| unix | 0 | 0 | 0 | 0 | AOTS | Unix support |
| macos | 0 | 0 | 0 | 0 | AOTS | Mac support |
| tkmacosx | 122 | 0 | 0 | 0 | AOTS? | Macs support |
| win | 0 | 0 | 0 | 0 | AOTS | Windows support |
| tkwin | 1285 | 0 | 0 | 0 | SAO | Windows support |
| Look and feel | ||||||
| awthemes | 0 | 0 | 0 | 6852 | OTS | Themes in TK |
| scidthemes | 0 | 0 | 0 | 342 | OTS | Themes in TK |
| ttkthemes | 0 | 0 | 0 | 8234 | OTS | Themes in TK |
| Communications | ||||||
| xpa | 24434 | 272 | 0 | 0 | SAO | Interprocess control |
| tclxmlrpc | 400 | 0 | 398 | 0 | SAO | RPC support in TCL |
| openssl | 440935 | 0 | 0 | 0 | OTS | Access to remote data |
| tls | 4422 | 746 | 0 | 0 | OTS | TCL interface to openssl |
| Parser support | ||||||
| fickle | 0 | 1007 | 0 | 0 | AOTS | TCL lexer |
| taccle | 0 | 1726 | 0 | 0 | AOTS | TCL parser |
| Infrastructure | ||||||
| vector | 1943 | 0 | 0 | 0 | SAO | 2D/3D vector library |
| tclzipfs | 5181 | 0 | 0 | 0 | AOTS | In-memory file system |
| tclsignal | 635 | 0 | 0 | 0 | AOTS | Tcl/Tk signal handler |
| tclxml | 18121 | 12277 | 0 | 0 | OTS | XML I/O for Tcl |
| tkhtml1 | 22324 | 433 | 0 | 0 | OTS | HTML rendering |
| TCL/TK base | ||||||
| tcl8.6 | 729908 | 45778 | 0 | 0 | OTS | TCL language |
| tk8.6 | 306535 | 33079 | 0 | 0 | OTS | TK language |
| tcllib | 27083 | 375471 | 0 | 0 | OTS | TCL utilities |
| tklib | 1134 | 130316 | 0 | 0 | OTS | TK utilities |
| tkcon | 0 | 9910 | 0 | 0 | OTS | TK console tool |
| tclconfig | 0 | 0 | 0 | 0 | OTS | Autoconf macros |
DS9 major software components

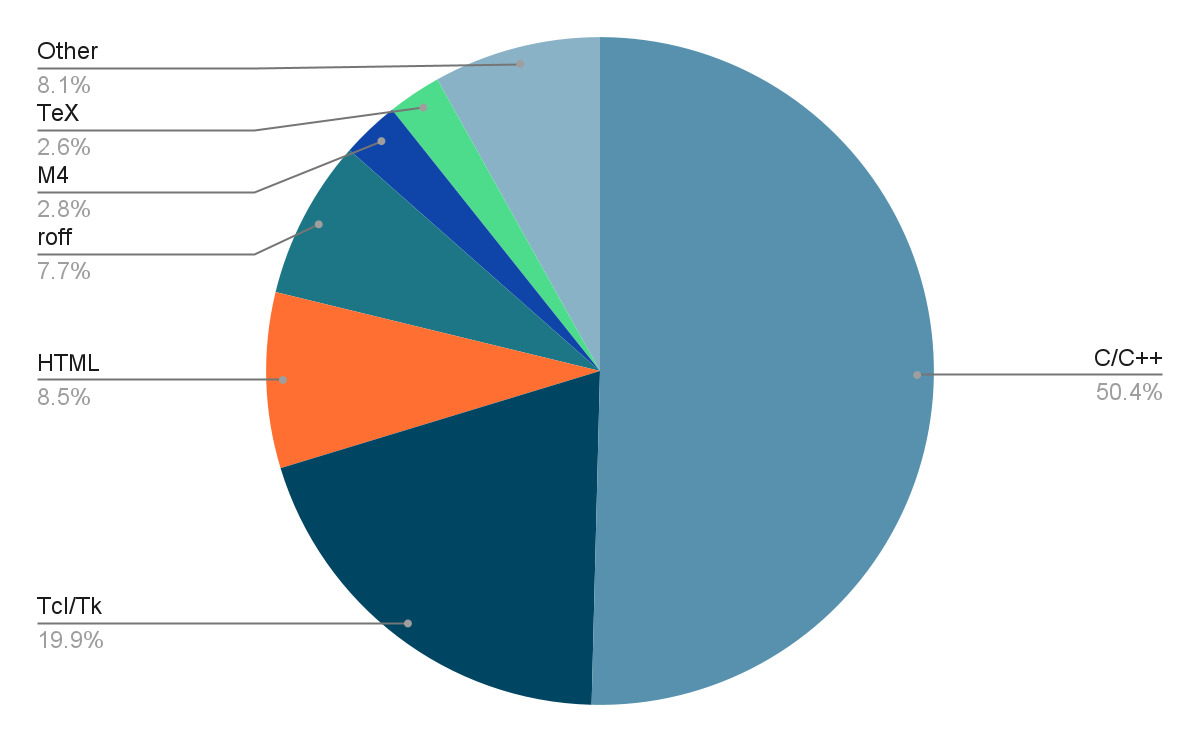

[Fig5x]Distribution of languages used in the total code base.
This includes the C/C++ code that makes up Tcl/Tk itself as well as
supporting third party packages and the SAO developed code. TeX and HTML
are text markup languages. Roff is the language used to define man
pages. M4 is the language used for the configure (autoconf) file.
Structure of the DS9 core components
Here we unpack the DS9 and tksao components in a little more detail.
| Component | C/C++ | Tcl/Tk | Parser | Other | Description |
| LOC | LOC | LOC | LOC | ||
| Core code | |||||
| ds9/library | 0 | 93594 | 0 | 0 | DS9 functions, including regions |
| ds9/parsers | 0 | 3997 | 0 | 0 | DS9 parsers - fcl source |
| ds9/parsers | 0 | 221366 | 0 | 0 | DS9 parsers - autogenerated tcl |
| tksao/saotk.C | 105 | 0 | 0 | 0 | Initialization code |
| tksao/colorbar | 18098 | 0 | 0 | 0 | Color bars |
| tksao/frame | 101440 | 0 | 0 | 0 | Image frames |
| tksao/magnifier | 3809 | 0 | 0 | 0 | Magnifier |
| tksao/panner | 4651 | 0 | 0 | 0 | Panner |
| Data | |||||
| ds9/cmaps | 0 | 0 | 0 | 13153 | Colormap tables |
| ds9/icons | 0 | 0 | 0 | (100 files) | Icons (png) |
| ds9/template | 0 | 0 | 0 | 703 | Instrument outlines |
| Portability | |||||
| ds9/macos | 223 | 0 | 0 | 0 | Portability |
| ds9/win | 223 | 0 | 0 | 134 | Portability |
| ds9/unix | 320 | 0 | 0 | 0 | Portability |
| ds9/msgs | 0 | 0 | 0 | 8464 | Localization |
| Infrastructure | |||||
| ds9/util | 0 | 68 | 0 | 0 | Message support |
| ds9/tclconfig | 0 | 0 | 0 | 4071 | Build wrappers |
| tksao/list | 450 | 0 | 0 | 0 | List class |
| tksao/tclconfig | 0 | 0 | 0 | 4072 | Build wrappers |
| tksao/tkutil | 3582 | 0 | 0 | 0 | Utilities (convolve etc) |
| tksao/widget | 1730 | 0 | 0 | 0 | Graphics widget classes |
| tksao/iis | 1152 | 0 | 0 | 0 | IRAF IIS RPC |
Building and Linking the executable
Building and Linking the executable - Unix
- Note that on linux distributions, you may need to install libxml2-dev and libxslt1-dev in particular.
- The build process uses an environment variable EXE; you may wish to ensure this is not already set.
Then the following simple procedure will build DS9:
git clone https://github.com/SAOImageDS9/SAOImageDS9 cd SAOImageDS9 unix/configure make
At the final stage of the Make process the makefile links the DS9 executable.
- First the ds9.zip Makefile target makes a zip file, ds9.zip,
from the contents of ds9/library.
- Then, in the ds9/unix directory, the ds9 Makefile target creates
`ds9base' by
g++ -pipe -g -Wall -o ds9base ds9.o tkAppInit.o {lots of libraries} - Now it combines these outputs by
strip ds9base cat ds9base ds9.zip > ds9 zip -A ds9
This creates a final self-decompressing DS9 executable that is the concatenation of the ds9base linked executable with the ds9.zip directory tree of Tcl scripts, html files, libraries, etc. This is the file that you download and run.
Building and Linking the executable - MacOS/X11
Instead of concatenating the binary and zip file, they are left as two separate files.
Building and Linking the executable - MacOS/Aqua
A DMG installation package is created with both executable and support files included.
Building and Linking the executable - Windows
Cygwin is used to create a self-extracting zip executable that unpacks into a Windows application directory.
